High speed jacquard machine

High speed jacquard machine is working with weaving machine that uses digital technology to create intricate and detailed designs in fabrics. It is capable of producing complex patterns with multiple colors and textures, which are difficult to achieve using traditional weaving methods. The machine is controlled by a computer system that operates various mechanisms to produce the desired pattern.

speed		opening size		Modules can be selected according to fabric process
600 RPM		50-165mm		M5 module,LENO module,Sun16module，Velvet cutting module
HOOKS
6144	6912		8448		10240	12288	19456	38912

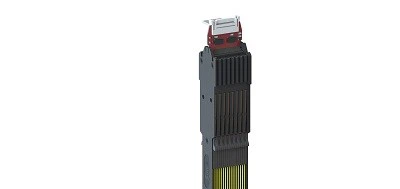

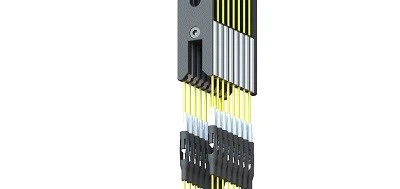

一、The successful development and application of the 16 hooks module has made it possible to weave large jacquard hooks with wide width and high precision at high speed. Taking 340 width single weave fabrics as an example, the warp density can achieve 125 warp/cm high density, but the size of the jacquard machine is only 5 meters * 1.7 meters large single jacquard machine, which does not require multiple machines to splice, making it possible to weave high-end fabrics in large quantities. In addition, 16 hooks high-density module can be widely used for mass weaving of ultra high-end fabrics such as large needle trademark machines, large needle knitting belt machines, and large needle carpet machines.

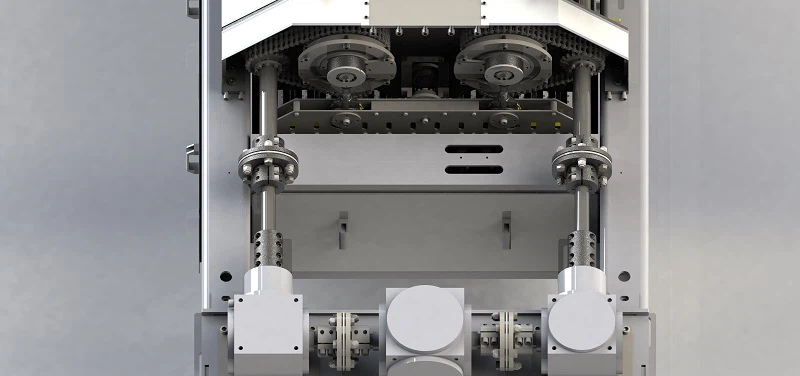

二、Dual shaft and dual power, with stable and balanced forces, the application of dual section chains reduces the load on a single chain by half, reducing its length by 1.5-2.5 times compared to a single section long chain, greatly delaying the chain's tightening maintenance cycle, and extending the chain's life.

8448-3

Showcase in production factory.
