Hey there! As a supplier of Jacquard Pulleys, I'm super stoked to share with you a step-by-step guide on how to install a Jacquard Pulley. Whether you're a DIY enthusiast or a professional in the textile industry, this guide will walk you through the process.
What You'll Need
Before we dive into the installation process, let's gather the necessary tools and materials. You'll need a set of wrenches, a screwdriver (both flathead and Phillips, just to be safe), a measuring tape, and of course, your Jacquard Pulley. You might also want to have some lubricant handy to ensure smooth operation later on.
Step 1: Prepare the Installation Area
First things first, find a clean and well-lit area to work in. Clear any clutter that might get in your way. Measure the space where you plan to install the pulley to make sure it fits. You don't want to end up with a pulley that's too big or too small for the spot. Check for any obstructions or uneven surfaces that could affect the installation.
Step 2: Inspect the Jacquard Pulley
Take a good look at your Jacquard Pulley before you start installing it. Make sure there are no visible damages, like cracks or dents. Check the bearings to ensure they spin freely. If you notice any issues, it's best to contact us right away. We're here to make sure you get a high-quality product.
Step 3: Position the Pulley
Now, it's time to position the pulley in the designated area. Use your measuring tape to align it properly. You want the pulley to be centered and level. This is crucial for its smooth operation. If the pulley isn't positioned correctly, it could cause unnecessary wear and tear, and even affect the performance of your machine.
Step 4: Attach the Mounting Bracket
Most Jacquard Pulleys come with a mounting bracket. Use your screwdriver or wrenches to attach the bracket to the installation surface. Make sure the screws or bolts are tightened securely, but don't over-tighten them. You don't want to strip the threads or damage the bracket.
Step 5: Install the Pulley onto the Bracket
Once the mounting bracket is in place, carefully place the Jacquard Pulley onto it. Line up the holes on the pulley with the holes on the bracket. Insert the appropriate screws or bolts and tighten them. Again, be careful not to over-tighten. You can use a little bit of lubricant on the threads to make it easier to install and to prevent rusting in the future.
Step 6: Connect the Belt
Now, it's time to connect the belt to the pulley. Make sure the belt is the right size and type for your Jacquard Pulley. Check the tension of the belt. It should be tight enough to transfer power effectively, but not so tight that it puts too much strain on the pulley and the motor. You can adjust the tension by moving the motor or using a tensioning device if your setup allows it.
Step 7: Check the Alignment
After connecting the belt, double-check the alignment of the pulley and the belt. A misaligned belt can cause the pulley to wear out quickly and can also lead to a loss of power. You can use a straightedge or a laser alignment tool to ensure everything is in line.
Step 8: Test the Pulley
Once you've completed all the installation steps, it's time to test the Jacquard Pulley. Turn on the machine and let it run for a few minutes. Listen for any strange noises or vibrations. If you notice anything unusual, turn off the machine immediately and check for any loose parts or misalignments.
Optional Accessories

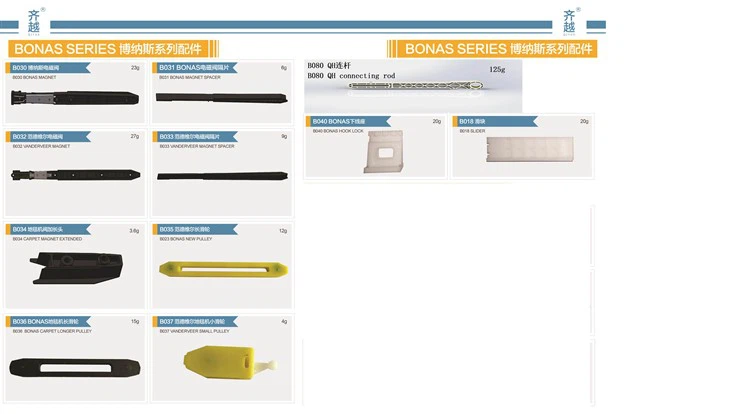

If you're looking to enhance the performance of your Jacquard Pulley, we offer some great optional accessories. For example, the Vanderveer Magnet Spacer can help with the magnetic alignment and improve the overall efficiency of the pulley. The Quick Connector makes it easier to connect and disconnect the belt, which can save you a lot of time during maintenance. And the Vanderveer Small Pulley can be used in certain setups to adjust the speed or torque.
Conclusion
Installing a Jacquard Pulley isn't as complicated as it might seem. By following these steps, you can ensure a successful installation and enjoy the smooth operation of your machine. If you have any questions or need further assistance, don't hesitate to reach out to us. We're always here to help.
If you're interested in purchasing a Jacquard Pulley or any of our accessories, we'd love to have a chat with you. Contact us to start a procurement discussion and find the best solution for your needs.
